Targeted Industrial Use and User Profile
Designed specifically for bending machine manufacturers and pipe bend machine suppliers, the Vertebra Bending - Type 5-7 addresses the needs of industrial users requiring consistent, high-precision bending solutions. This metal bend machine supports multiple metal profiles, making it a flexible solution adaptable to various production line configurations. It is suited for operations demanding reliable tube bend machine accuracy in sectors such as automotive assembly, heavy machinery fabrication, and structural manufacturing. The design targets professionals who prioritize repeatability and quality in metal bending processes, delivering operational efficiency for complex workflows.
Technical Specifications and Capabilities

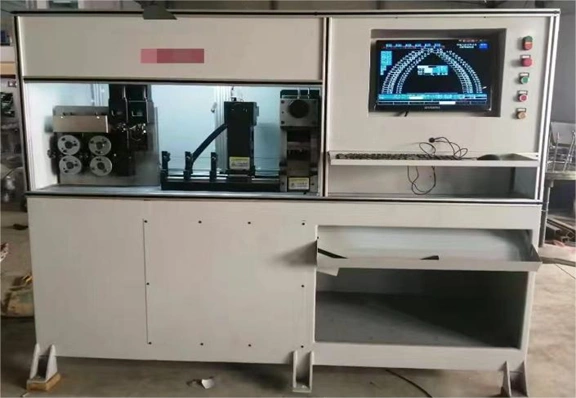

The 3-Roller Vertebra Bending - Type 5-7 integrates advanced CNC control with a six-axis servo motor system enabling radian editing points ranging from 21 to 81. The system supports processing metal materials with diameters between 7.0 mm and 28 inches, accommodating thicknesses from 0.7 to 1 mm. Power ratings include dedicated motors for curved arc and material feed, each rated at 0.75 kW, with a 2.7 kW servo motor for precise material delivery. This bend machine provides an operating efficiency of up to 30 pieces per minute, supported by a 500 kg capacity material delivery rack, ensuring throughput and precision for demanding pipe bend machine and tube bend machine requirements.
Integration into Industry Applications
This metal bend machine is deployed effectively in automotive parts manufacturing, construction framework production, and general heavy industry requiring precise metal forming. Its versatility allows bending various profiles used in structural components and fluid transport systems, meeting rigorous quality standards. The machine's adaptability to diverse metal types and profiles supports manufacturers in enhancing product consistency while reducing rework. By integrating the Vertebra Bending - Type 5-7 into automated production lines, bending machine manufacturers realize improved compliance with industry-specific tolerances and gain measurable enhancement in operational workflow.
| ltems | Technical data |
| unit type | Type 5-7.0 |
| operating system | CNC |
| Number of radian editing points | 21-81 |
| Servo axis number | 6 |
| Cut the station | 2 Station |
| Forming mode | monopodium |
| Feed wire wheel group | 2 Group |
| Send line way | gear type |
| Encoder detection | not have |
| Mold card testing | not have |
| No material /disconnection detection |
not have |
| Discharge method | Material belt launch |
| Intermediate gappower | .750KW |
| Power of curyedcurved motor | .750KW |
| Auxiliary curvedarc motor power | .750KW |
| Intermediate notchmode moves the motor power |
.750KW |
| Forming mechanismmoving motor power | not have |
| Delivery lineservo motor power | 2.7KW |
| suitable materialdiameter | W7.0*T0.7~1 mm |
| Processing range(inch) | 14”-28" |
| production efficiency | Admito 30/ min |
| Material delivery rack | The 500kg simple type |
| Paid rack power | 1.5KW |
Use Scenarios
Application in Automotive Parts Manufacturing
In automotive manufacturing environments, the Vertebra Bending - Type 5-7 serves as a critical component in fabricating chassis components and exhaust system assemblies. The machine’s precise bending capabilities allow it to consistently form metal tubes and pipes to stringent specifications required for vehicle safety and performance. Its compatibility with high-volume production workflows supports integration into fully automated bending lines where the rapid setup and adjustment enhance line throughput. This bend machine’s durability ensures compliance with industry standards such as ISO/TS 16949, providing manufacturers with reliable, repeatable results essential for just-in-time production systems.
Role in Construction and Structural Fabrication
Within the construction sector, this metal bend machine supports the formation of structural elements including pipework and tubular frameworks used in building infrastructure. The machine’s capacity to handle large-diameter materials with consistent bend radii aligns with engineering specifications for load-bearing applications. It provides manufacturing facilities with the ability to produce components that meet tight dimensional tolerances, enhancing their fit and function on-site. Integration with material handling and quality assurance systems allows bending machine manufacturers to maintain efficient production cycles while adhering to regulatory standards governing structural materials.
FAQ
What types of metal materials can the Vertebra Bending - Type 5-7 process?
Our metal bend machine handles various metal profiles with diameters ranging from W7.0*T0.7 to 1 mm and can bend materials used in automotive, construction, and manufacturing sectors. This versatility supports your pipe bend machine and tube bend machine requirements efficiently.
Can you customize the bending machine to specific production needs?
Yes, we can tailor our bending machines based on your operational demands. Our flexible manufacturing processes allow us to provide customized solutions that fit different metal profiles and production volumes for bending machine manufacturers.
How user-friendly is the Vertebra Bending - Type 5-7 for operators?
We designed the Vertebra Bending - Type 5-7 with an intuitive interface that simplifies operation, reducing training time. Its straightforward controls enable bending machine manufacturers and pipe bend machine operators to make quick adjustments and achieve consistent, high-quality bends.
What quality certifications support your metal bend machine production?
Our facilities hold QS-9001, QS-14001, and IATF 16949 certifications, guaranteeing that our bend machine products meet international standards. This commitment ensures durability, precision, and reliable performance for your pipe bend machine and tube bend machine applications.
